Description

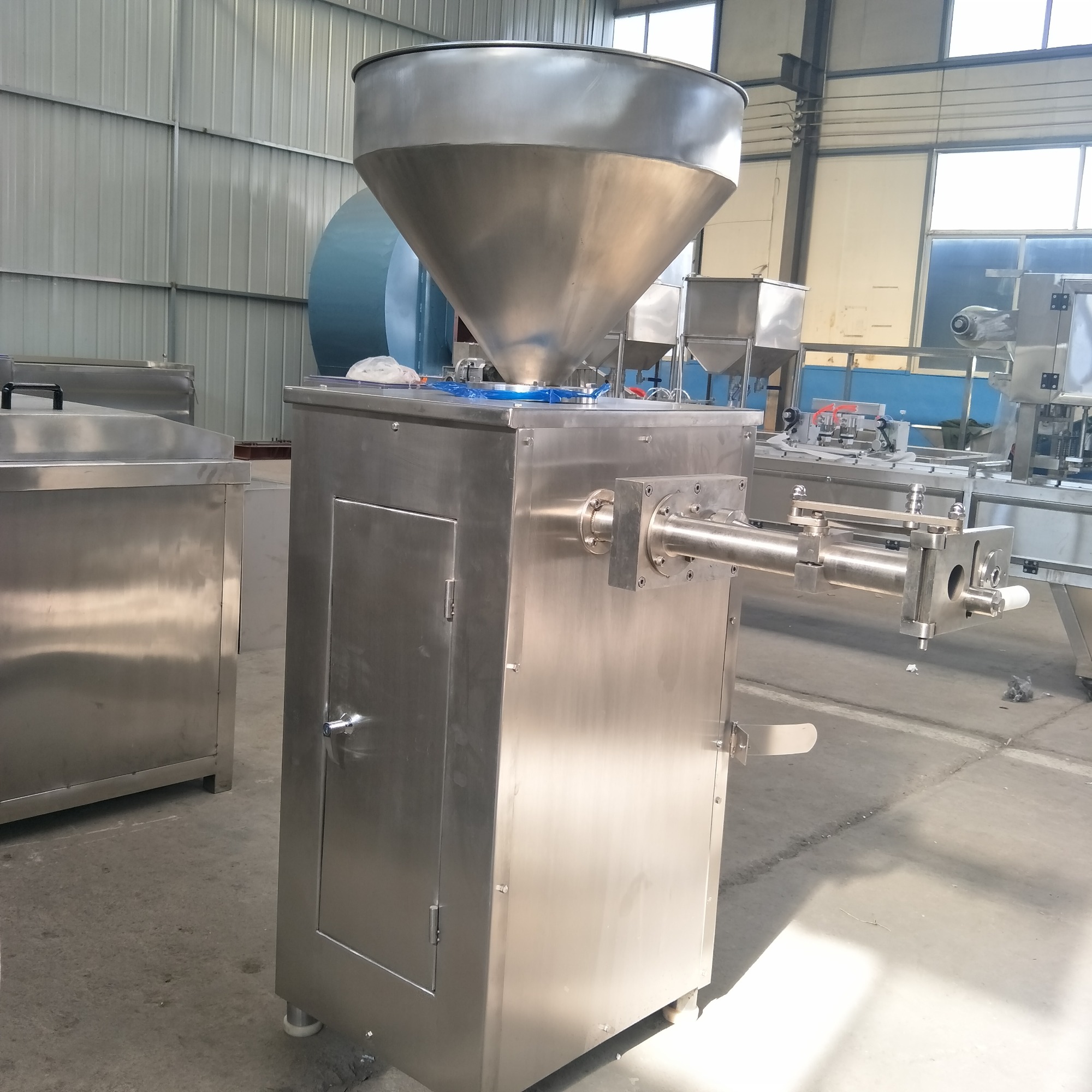

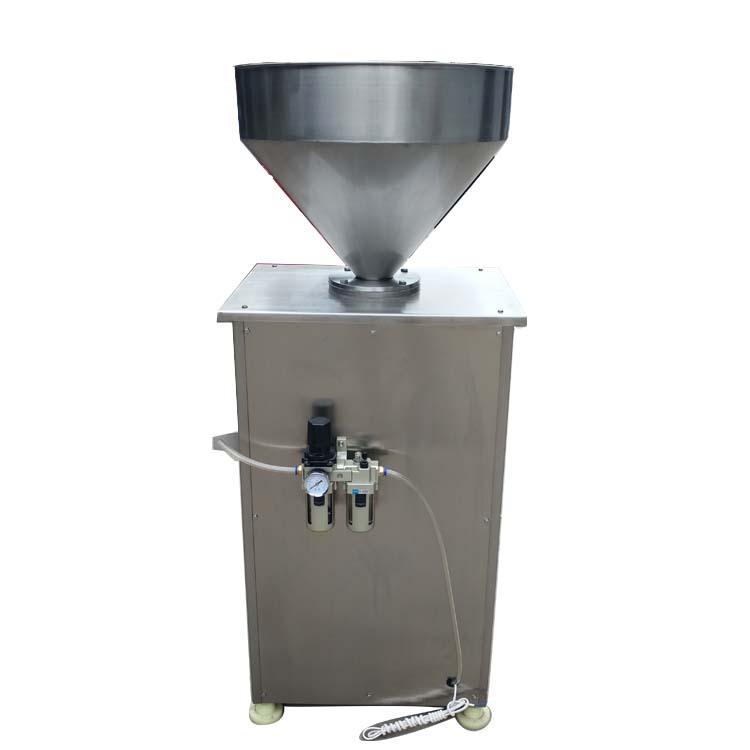

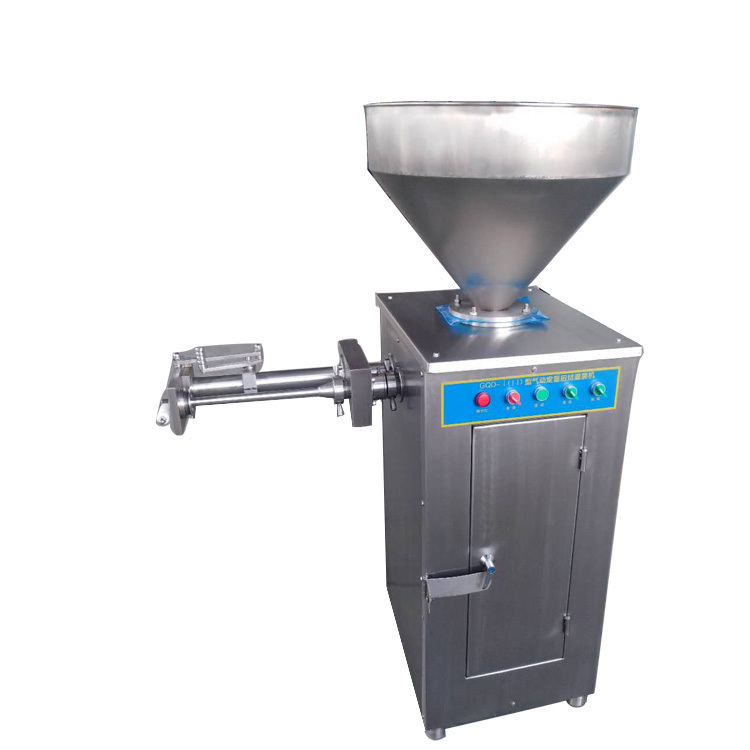

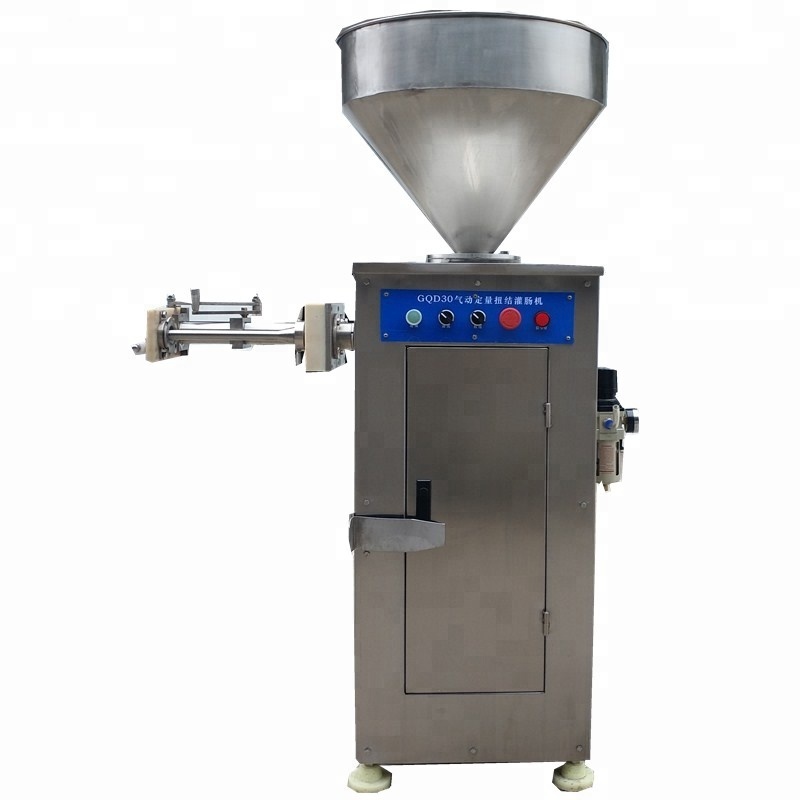

Sausage stuffer machine is mainly for filling different kinds of sausage, consists of machine frame,hopper,oil cylinder,hydraulic system.
through operating by hand to controlling filling volume.
Suitable for different diameter sausage and sausage casing:Animal casing, protein casing, plastic casing
Advantage
1. 304 stainless steel, high quality and reliable perfromance, durable, easy to clean, complied with food safety standard.
2. driving by piston type hydraulic pressure, widely application,suitable for different kinds of stuffing.
3. reasonable structure, beautiful appearance, stable performance, simple operation and maintenance.
Specification
|
Model |
PH-3500 |
PH-4500 |
PH-6000 |
|
Productivity (kg/h) |
3500 |
4500 |
6000 |
|
Filling speed (time/min) |
0-500 |
0-500 |
0-500 |
|
quantitative accuracy (g) |
±2 |
±2 |
±2 |
|
Kink laps |
1-10 |
1-10 |
1-10 |
|
vacuum degree(Mpa) |
-0.1 |
-0.1 |
-0.1 |
|
Voltage(v/HZ) |
380/50 |
380/50 |
380/50 |
|
Power(kw) |
7.5 |
9 |
11 |
|
Hopper capacity(L) |
220 |
220 |
220 |
|
the diameter of Filling pipe(mm) |
12/20/30/40 |
12/20/30/40 |
12/20/30/40 |
|
Weight (kg) |
780 |
1000 |
1400 |
