Introduction:

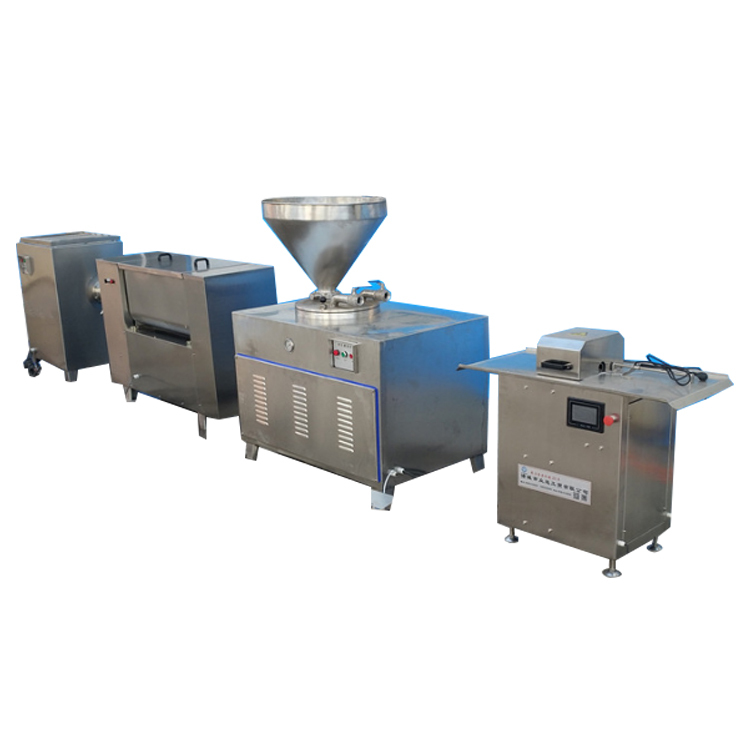

The whole sausage production line is from meat processing to cooked sausage process. We can supply different kinds of production line according to sausage casing type and production capacity requirements of our customers. In general, the sausage production line is composed of Frozen meat cutting machine, meat grinder, meat bowl cutter, meat mixer, sausage stuffer, smoke house(oven).
Main parts:

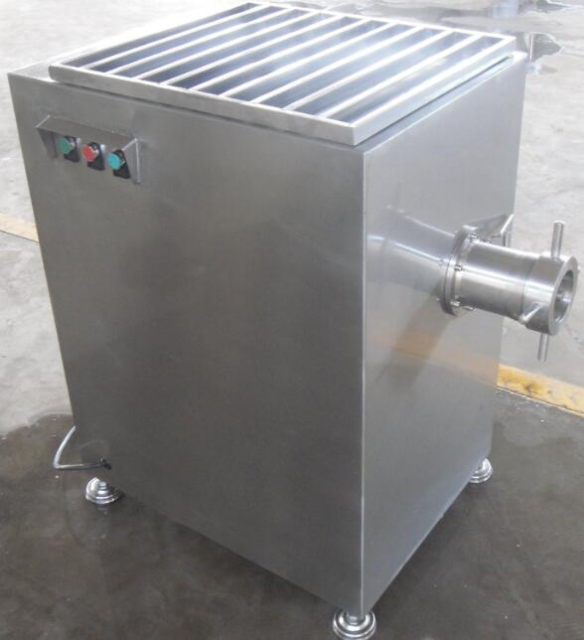

1. Meat Grinder Machine
|
Model |
Standard PH-100 |
|
Capacity |
100kg/h |
|
Knife size |
Dia 3-Dia30 |
|
Power |
3kw |
|
voltage |
380v/50Hz |
|
Machine Size |
980*580*940mm |

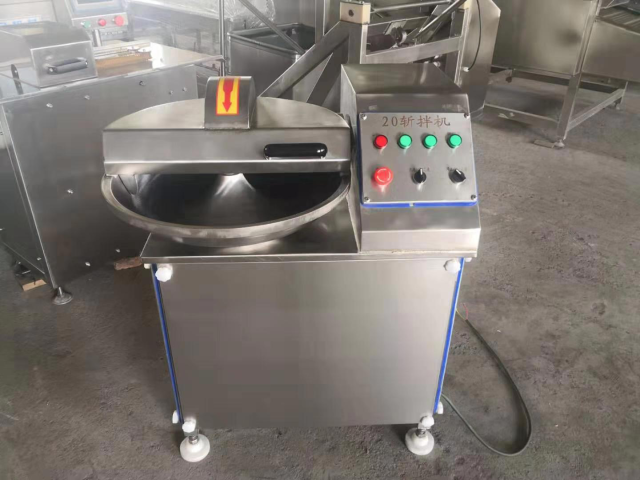

2. Meat Bowl Chopper
|
Model |
PH-ZB-2 |
|
Bowl Volume |
20L |
|
Power |
6.25Kw |
|
Country Voltage |
220V 50Hz |
|
Capacity |
15kg/Bowl |
|
Chopping knife |
3Pcs |
|
Chopping knife speed |
Chopping knife speed |
|
Bowl speed |
9 r/min |
|
Machine Weight |
200Kg |
|
Machine Size |
1050*760*1000mm |
3. Meat mixing machine
|
Model |
PH-200L |
|
Voltage |
380v/50Hz |
|
Power |
2.85Kw |
|
Upturn Mode |
Automatic Upturn |
|
Upturn Speed |
33R/min |
|
Machine size |
1350*580*1035mm |
|
Machine weight |
230kg |

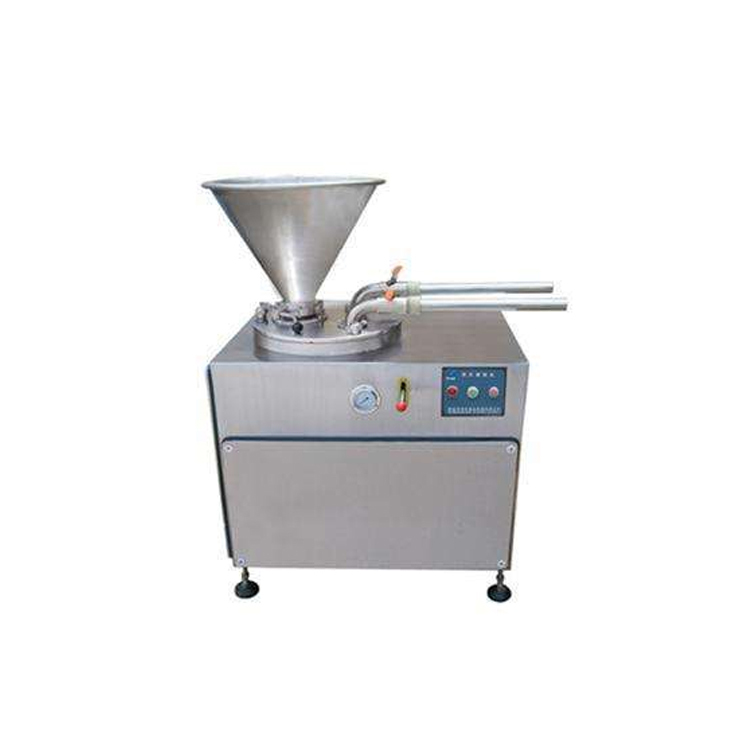

4. Sausage Filling Machine
|
Model |
PH-40 |
|
Voltage |
220v/380v |
|
Power |
1.5kw |
|
Capacity |
100-150kg/h |
|
Machine size |
950*700*1460mm |
|
Machine Weight |
135kg |

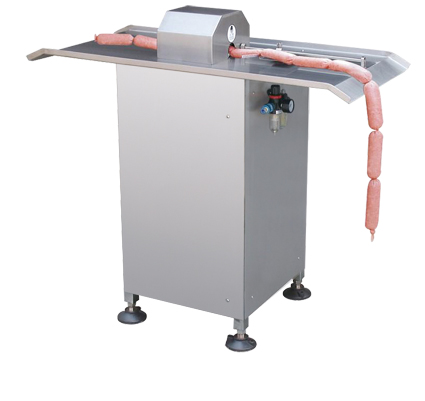

5.Sausage Tie Machine
|
Model |
PH-35 |
|
Sausage diameter |
Φ9~30mm |
|
Capacity |
60-80batch/min |
|
Sausage length |
30~180mm |
|
Working pressure |
0.4-0.6mpa |
|
Machine size |
1150*480*750mm |
|
Machine weight |
120kg |

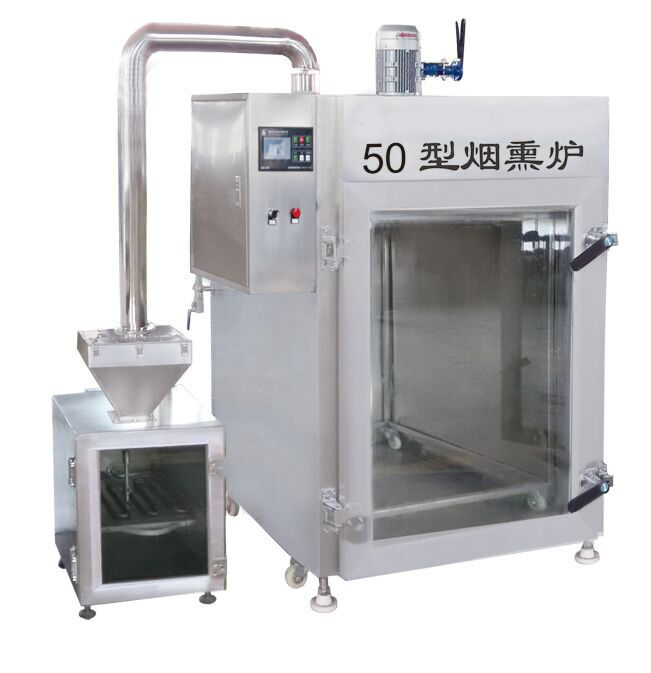

6. Smoking house
|
Model |
PH-50 |
|
Voltage |
220v/380v~50Hz |
|
Smoking dealing with |
Outside smoking |
|
Capacity |
50L/Batch |
|
Steam Heating |
6.5Kw |
|
Electrical heating |
18kw |
|
Cooling smoking |
8kw |
|
Trolley size |
1050*1350*2000mm |
|
Tray quantity |
15pcs |
|
Machine Size |
1400*2000*2900mm |
7. Vacuum packaging machine
|
Model |
PH-400/2S |
PH-400/2S |
PH-600/2S |
PH-800/2S |
|
Vacuum chamber size(mm) |
530*520*110 |
620*540*125 |
720*600*140 |
920*780*220 |
|
Sealing size(mm) |
400*10/2 |
500*10/2 |
600*10/2 |
800*10/2 |
|
Dimension(mm) |
1050*650*855 |
1220*680*900 |
1425*720*950 |
1830*910*1100 |
|
Capacity(time/hour) |
60-180 |
90-360 |
90-360 |
100-400 |
|
Power(kw) |
1.0 |
2.0 |
2.2 |
3.8 |
|
Weight(kg) |
150 |
230 |
320 |
620 |
Established in 2010, Henan Penghui Machinery and Equipment CO.,Ltd. is located in Zhengzhou, Henan Province.The company is mainly engaged in the import and export of sausage production line.
With strong technical power and exquisite craftsmanship, a comprehensive quality management system has been implemented to meeting our international clients' expectations on quality.
Packaging Details: wooden case or as customers' requested
Ports: Qingdao/Shanghai/Ningbo/Guangzhou
Lead Time: Within 5-7 days after payment
