Description

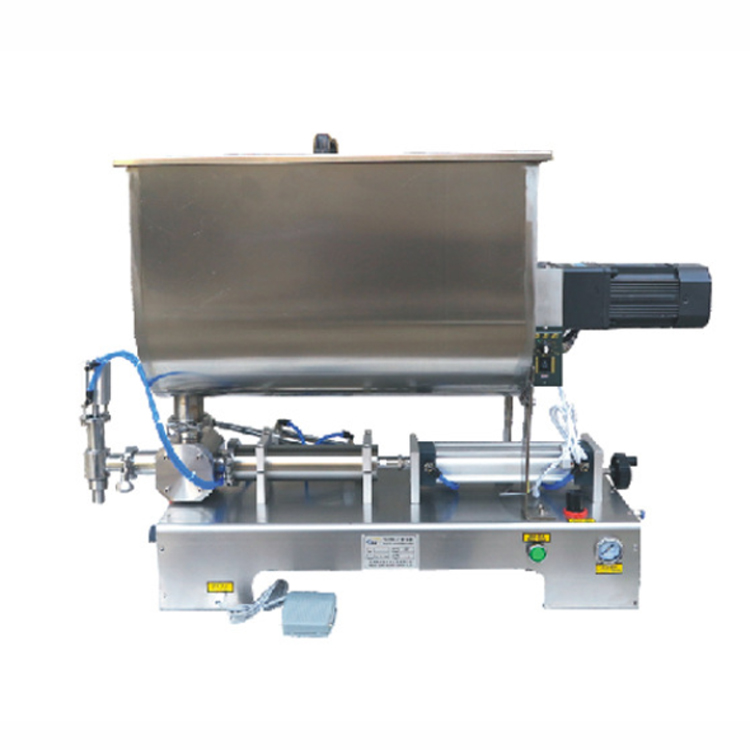

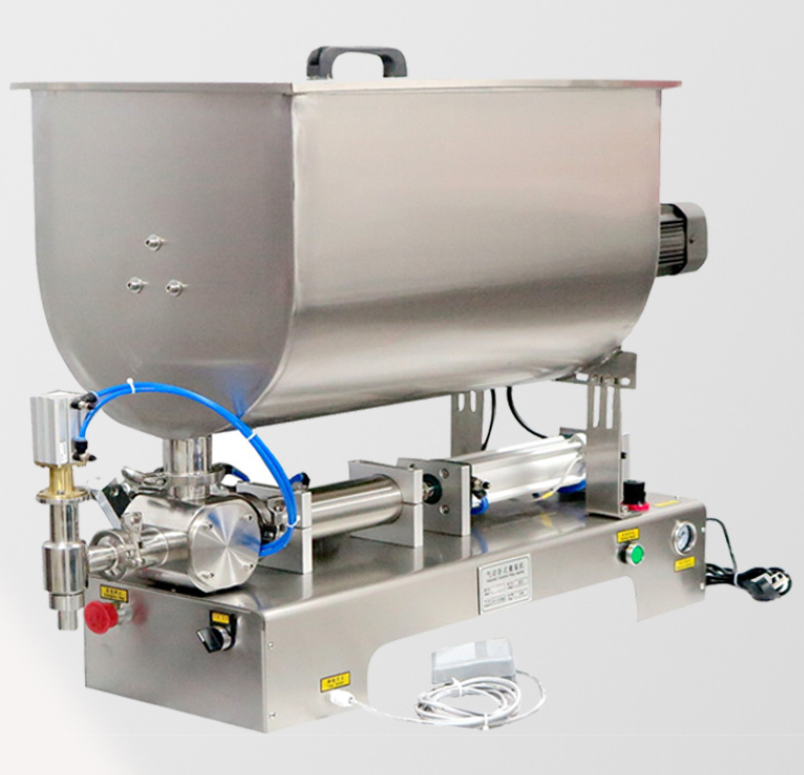

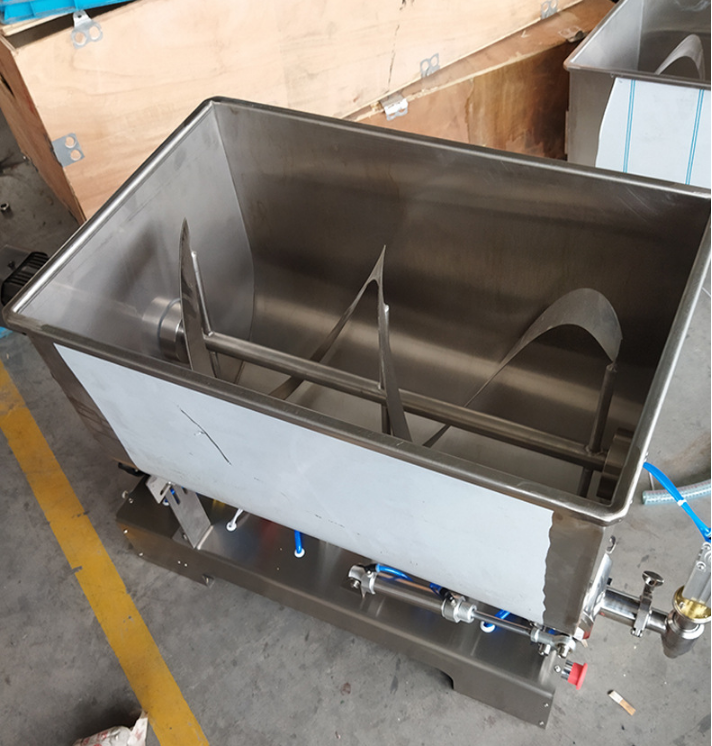

The machine is semi automatic double piston liquid filling machine, reasonable design, model compact, easy to operate. Material contact parts are made of 304 stainless steel material, meeting the GMP requirements. Filling volume adjustment handle, filling speed can be adllustable, high filling accuracy. The filling head adopts anti-drip, anti-drawing and lifting filling devices. The hopper is equipped with an adjustable speed mixing device to make the material more evenly filled. It is an ideal equipment for filling high-viscosity, paste, thick liquid with particles. Jam, peanut butter, bean paste, chili sauce, shrimp paste, apple sauce, salad dressing, and caviar can all be filled.
Specification
|
Model |
PH-2000 |
|
Voltage |
AC220/110V 50/60Hz |
|
Power |
20W |
|
Machine Weight |
45kg |
|
Dimension |
950*280*300mm |
|
Air pressure |
0.4-0.6Mpa |
|
Filling speed |
5-30 Bottles/min |
|
Filling accuracy |
≤±0.5% |
|
Adjustable model |
10-100ml/30-300ml/50-500ml/100-1000ml/ 500-2500ml/1000-5000ml |
