Shrimp cleaning and grading machine, including a frame, the frame is provided with a cleaning tank, motor, spray water pipe, said cleaning tank is provided with a conveyor belt, the output end of the conveyor belt is set above the cleaning tank, the conveyor belt is driven by the motor, the inner side wall of the cleaning tank is provided with a row of water spray holes toward the conveyor belt, the water spray holes are connected with the spray water pipe, the lower part of said cleaning tank is provided with a waste water outlet, the waste water outlet is connected with filtration equipment, filtration The net water outlet of the equipment is connected to the water jet pipe through the pump. As a result of the above structure, the shrimp products to be cleaned into the cleaning tank, cleaning tank on the inner side wall of the water jets constantly flush water to clean shrimp products, after cleaning the shrimp products by motor-driven conveyor belt output. The dirty water and sewage after washing are discharged from the wastewater outlet below the cleaning tank, and then flow to the filtering equipment for filtration, and the filtered water is pumped to the water jet pipe by the pump and sprayed out by the water jet hole.
Specification

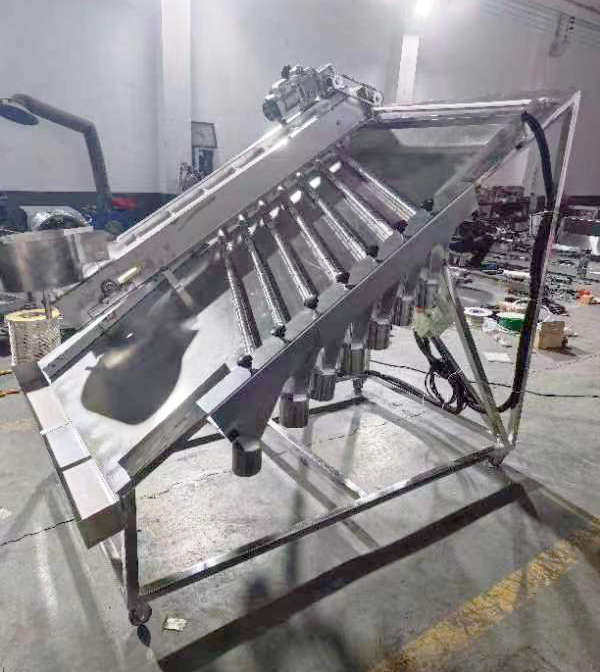

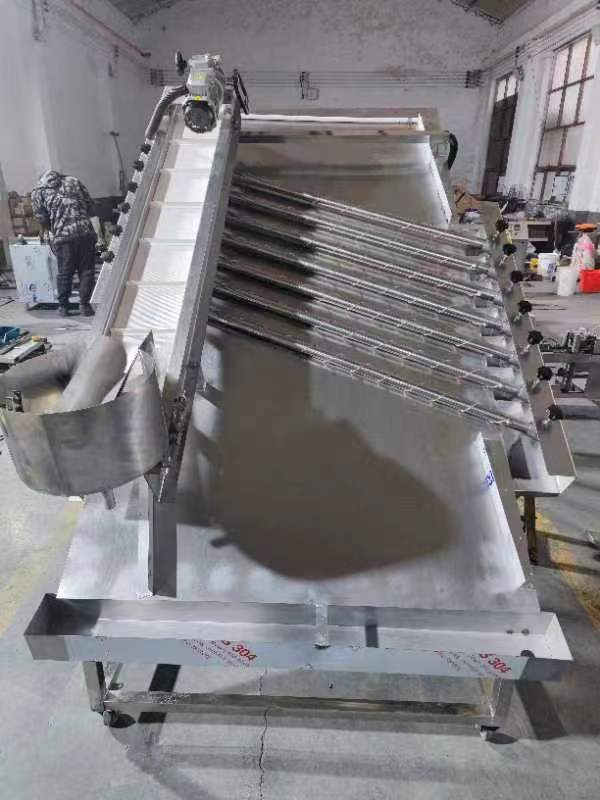

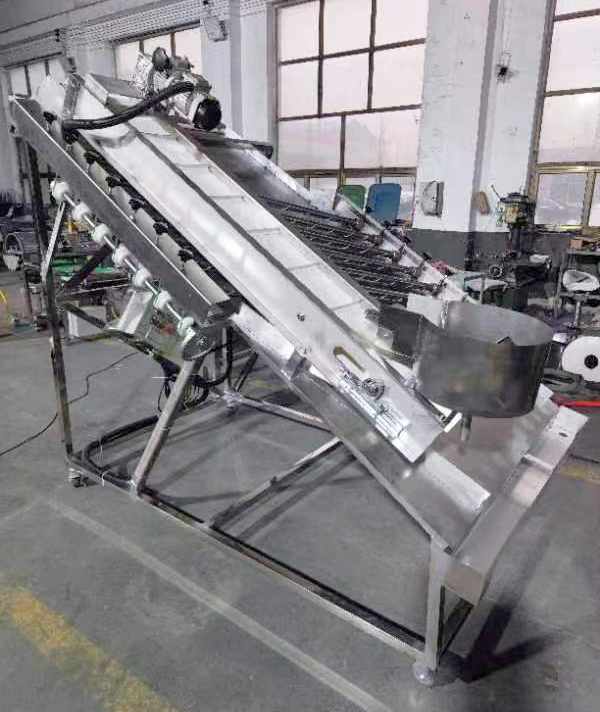

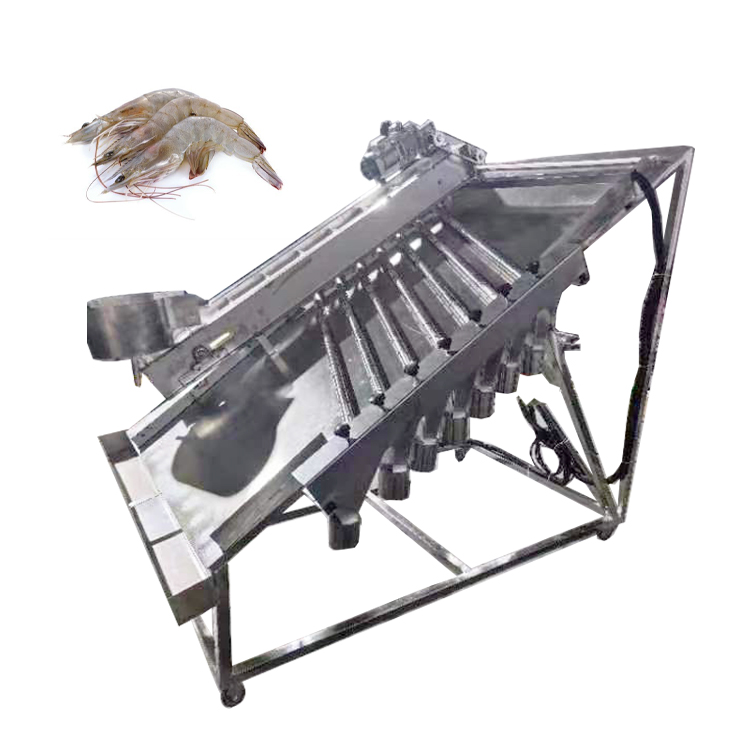

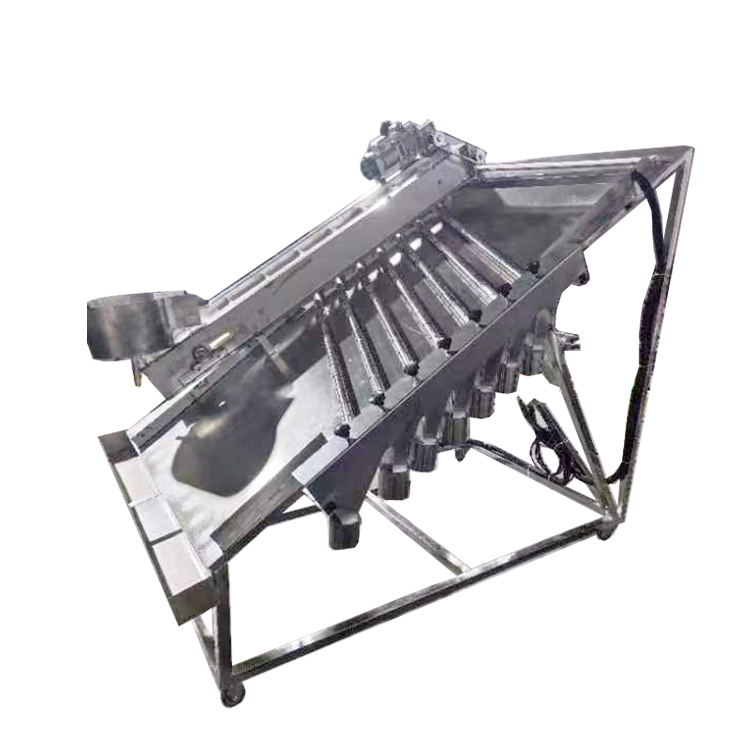

| Product name | Industrial Shrimp Fish Size Grading Sorting Machine Price |
| Model | PH-FSM600 |
| Capacity | 600-800Kg/H |
| Material | Stainless steel |
| Voltage | 380V/50HZ |
| Power | 800w |
| Size | 2000*1600*2000mm |
| Weight | 300KG |
| MOQ | 1 Set |
| PACKAGE | Wooden Case |
