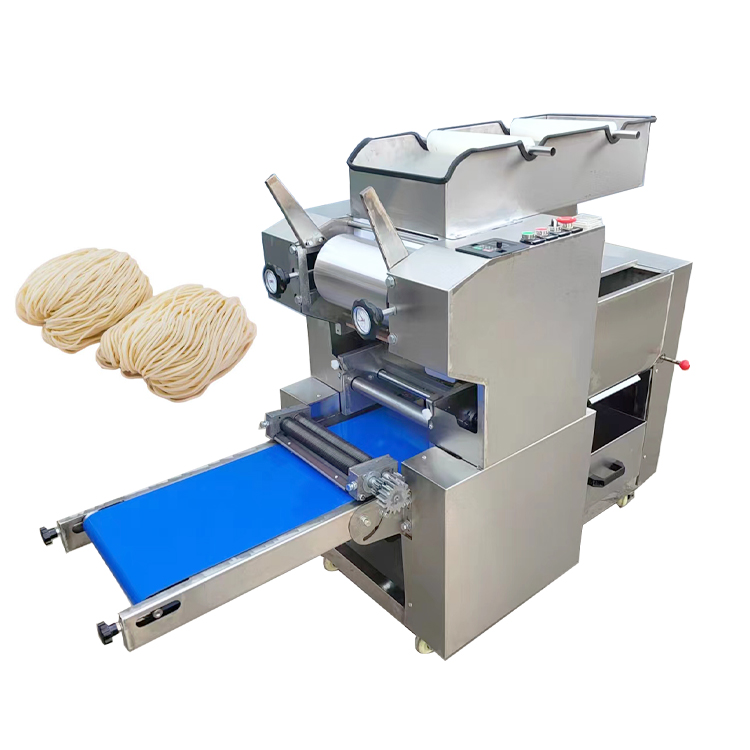

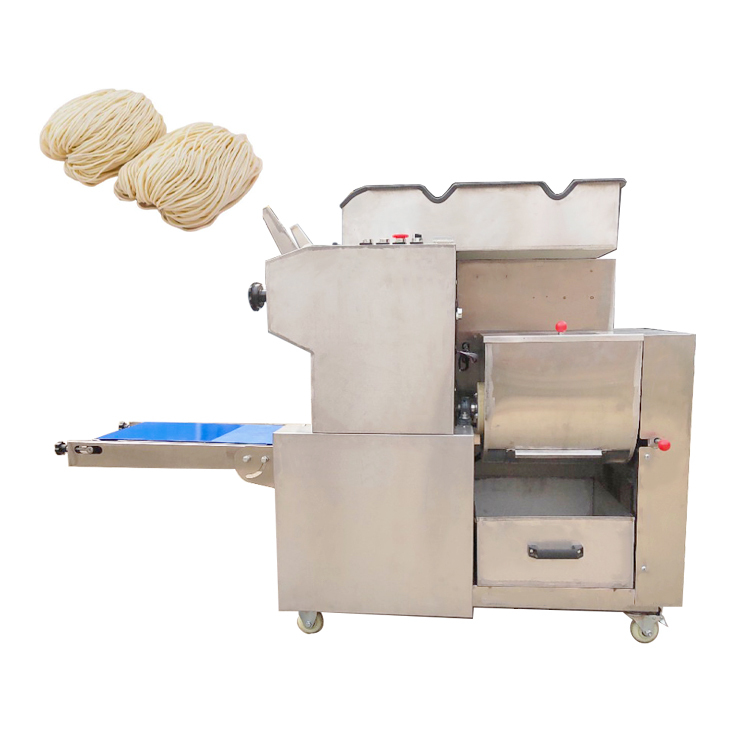

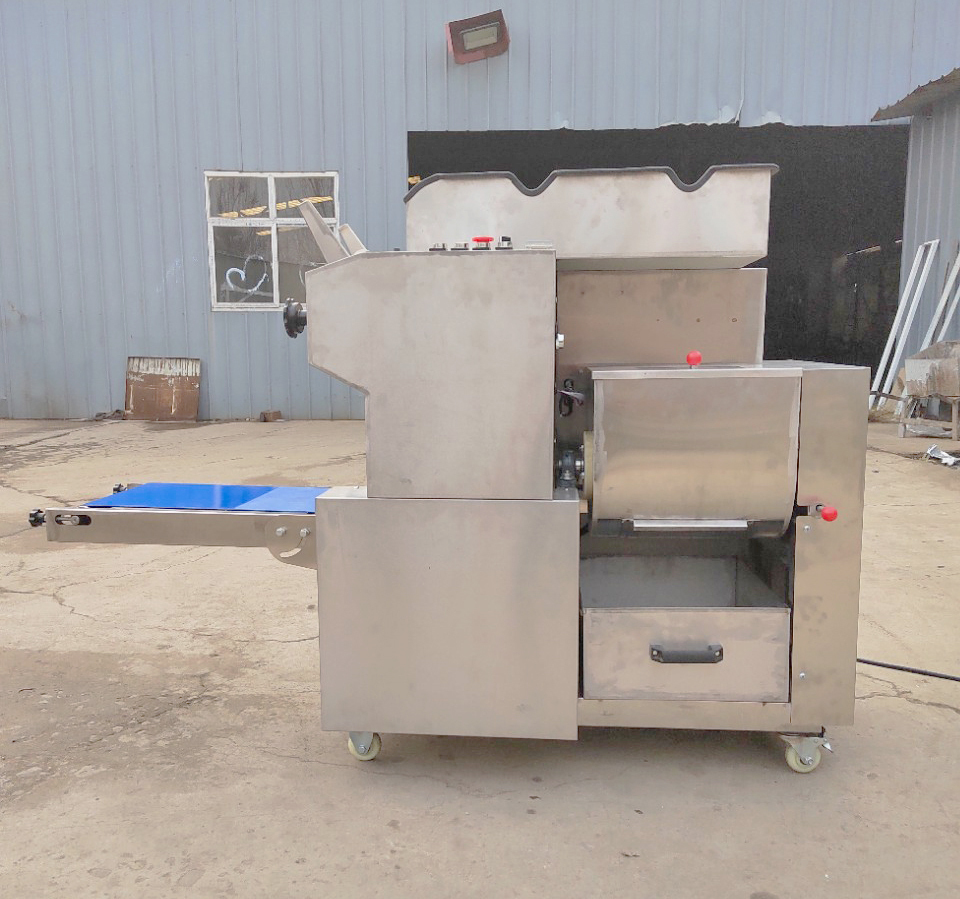

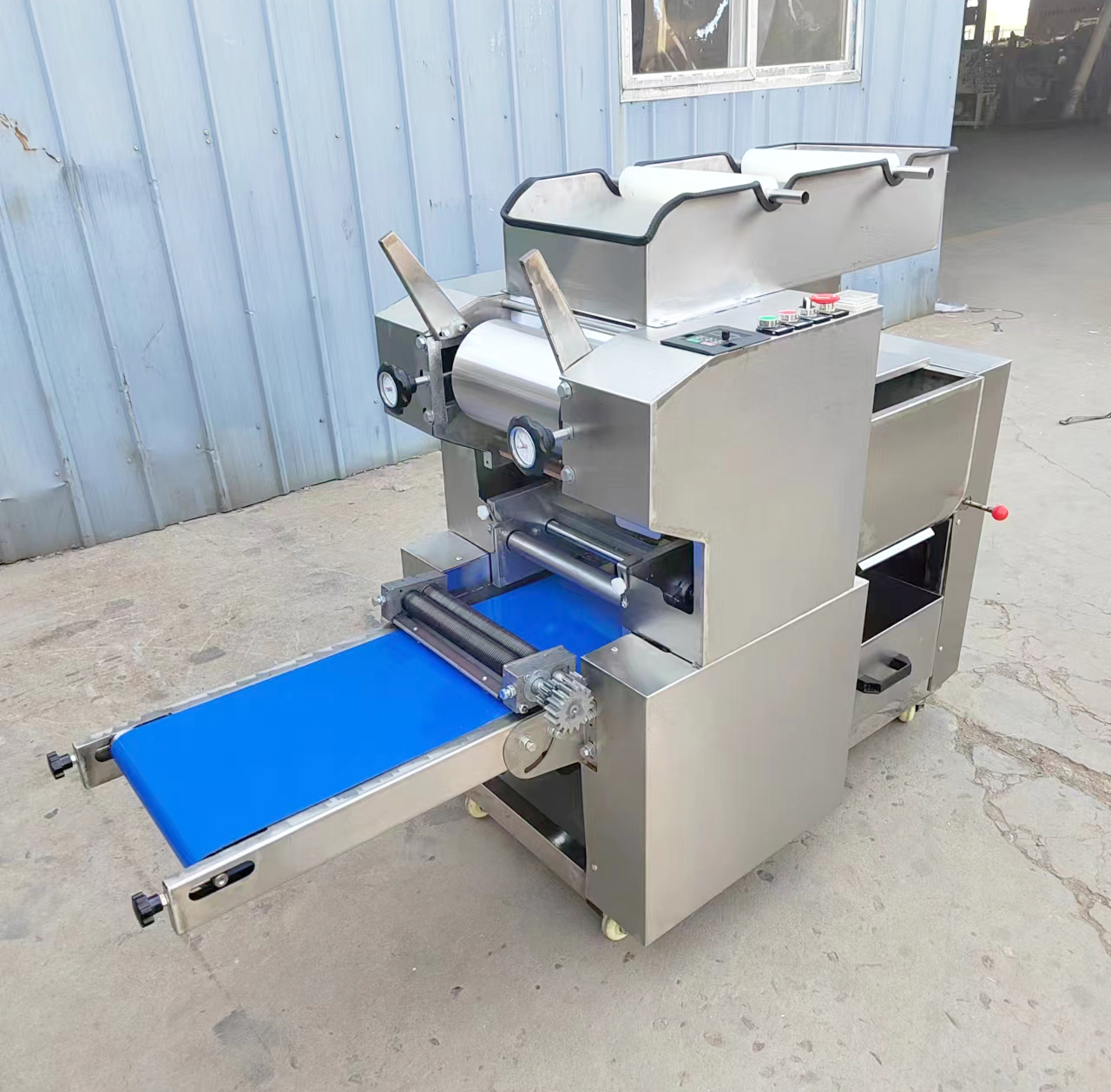

Ramen Noodle Maker Making Cutting Machine Commercial Automatic

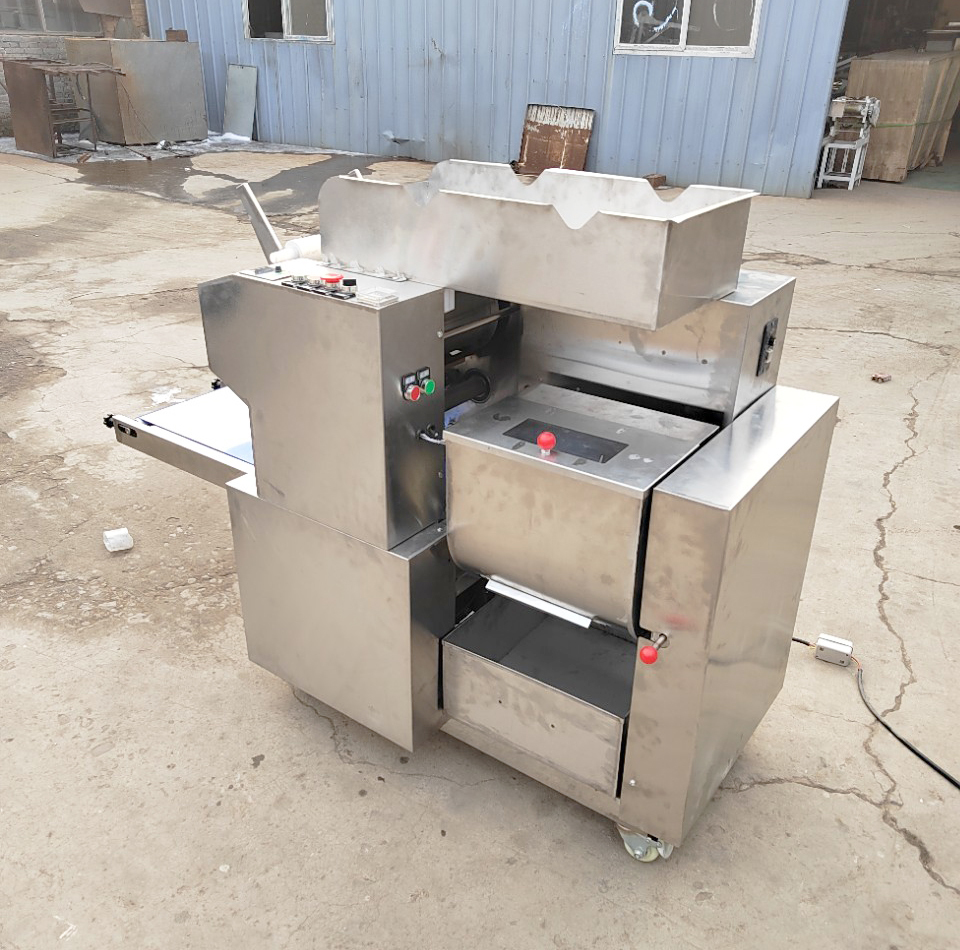

Operation manual of all-in-one machine for mixing noodles and pressing noodles

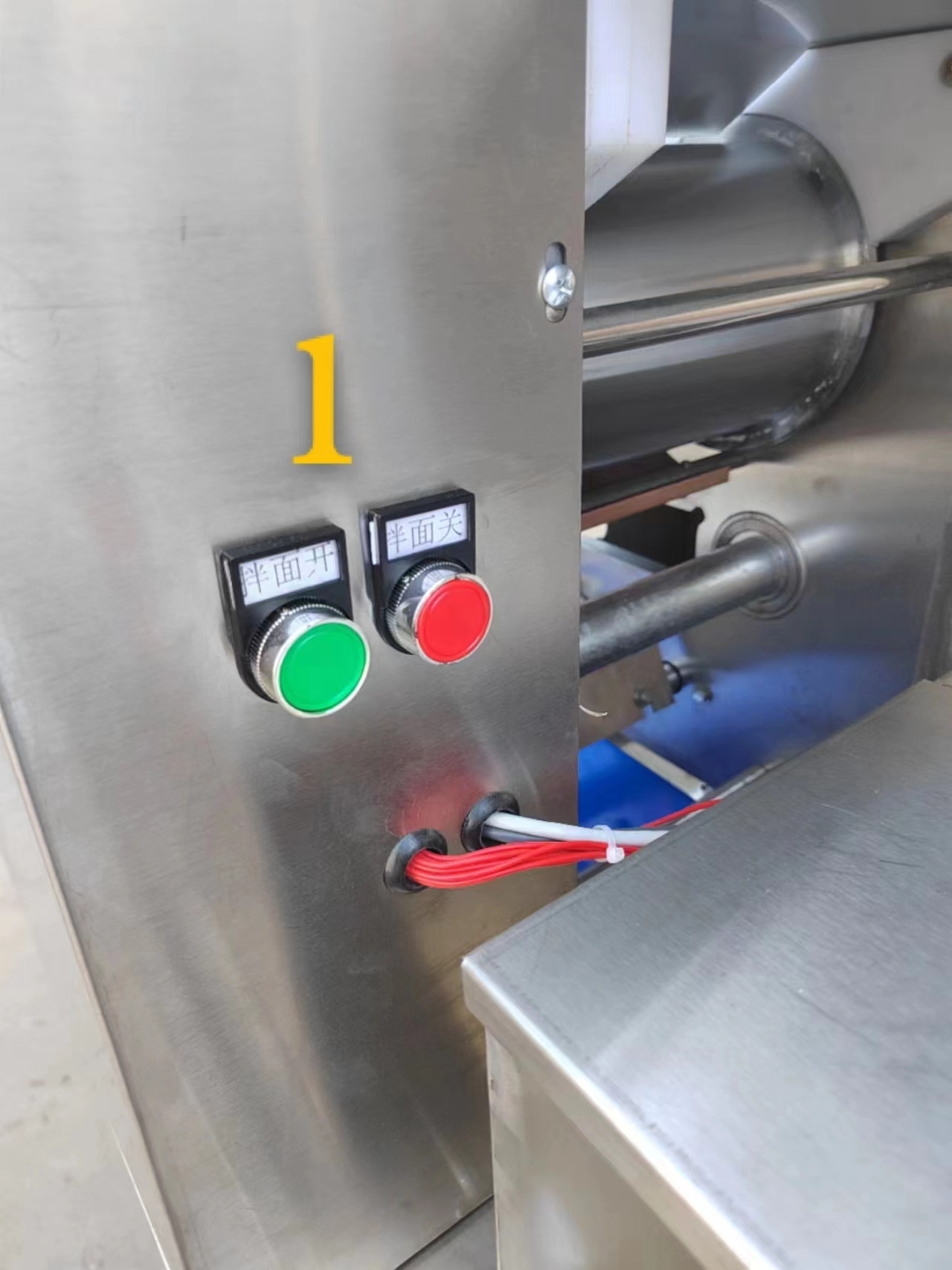

1, the indicating switch of the number 1 is the switch for mixing flour, the green button is to start, and the red button is to stop. Usage: pour in the flour and add the right amount of water, press the green button to start the switch to stir, stir for about 3 minutes, and then pour the stirred flour material into the hopper above the main engine.
2, the indication switch of the number 2 is the switch of the pressing surface host, the green button is to start, and the red button is to stop. Usage: press the green button to start the main engine press surface switch to press the surface.
3, the indication knob of the number 3 is the speed adjustment knob of the mainframe, which rotates on the right, the speed of the mainframe is fast, and the speed of the mainframe is slow when the left rotates.
4, the indicator switch of the number 4 is the noodle cut-off switch.
5, the indication of the number 5, the middle red S letter, the left digit to increase the cut-off time adjustment button, the time increases, the noodle cutting speed is slow, the noodle is long. The figure on the right is to reduce the cutting time adjustment button, the time is reduced, the noodle cutting speed is fast, the noodle is short. The cutting time can be adjusted to determine the length of the cut noodles.
6, the indication of the number 6 is the emergency stop switch, press the switch, and the machine stops when the power is cut off.

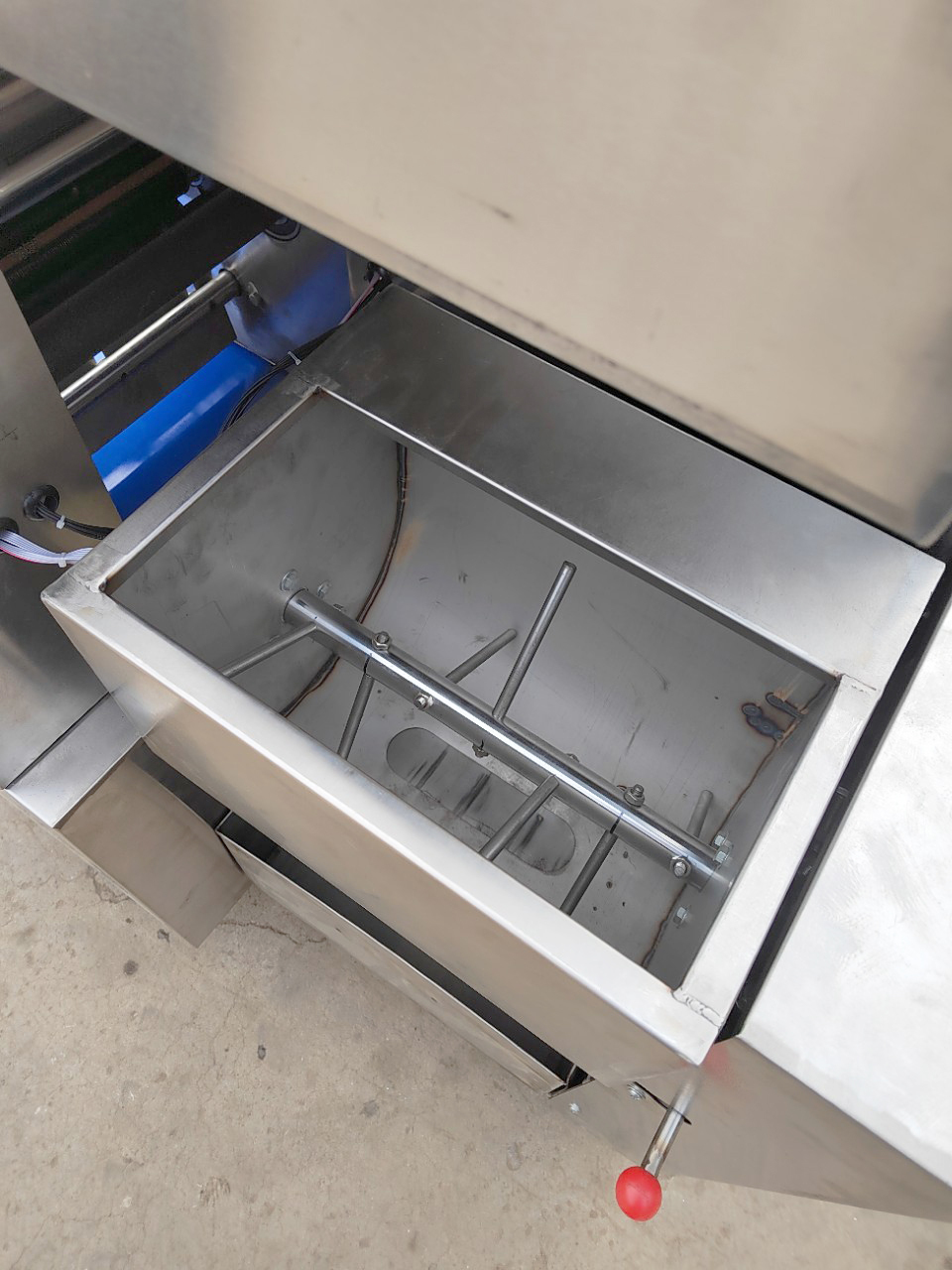

7, the indication part of the number 7 is the flour mixing function.

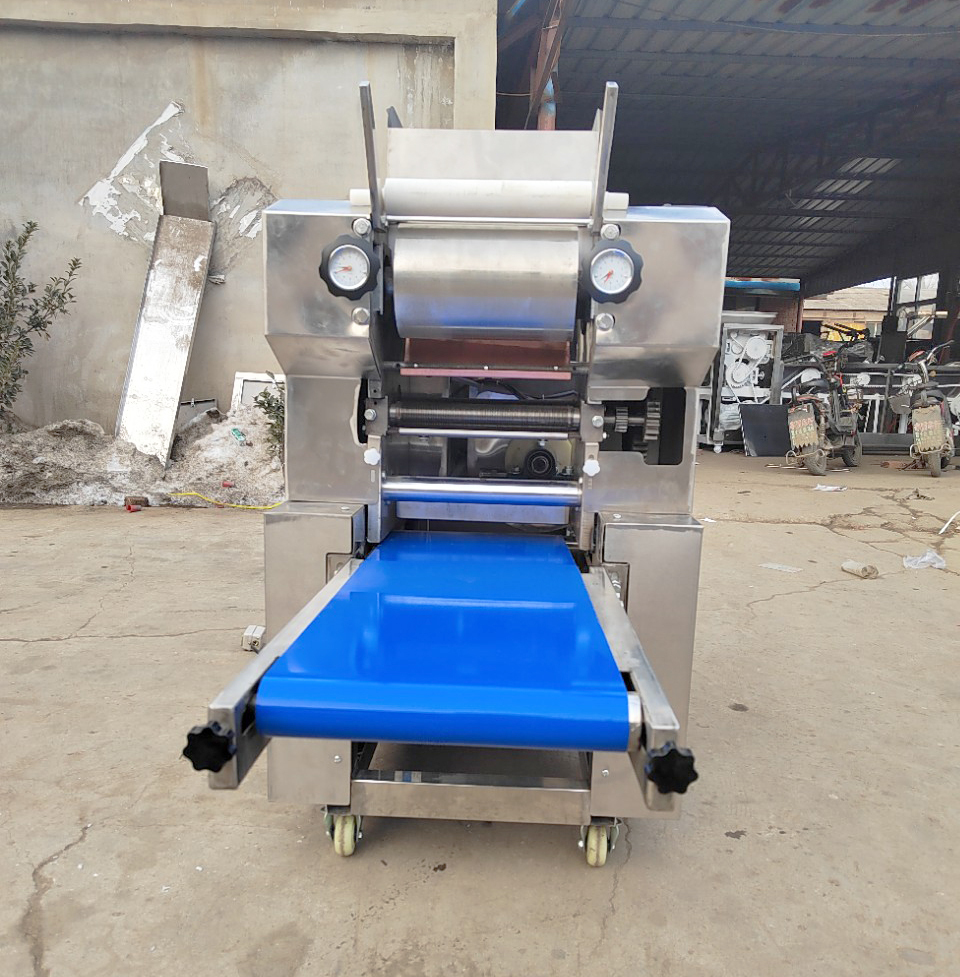

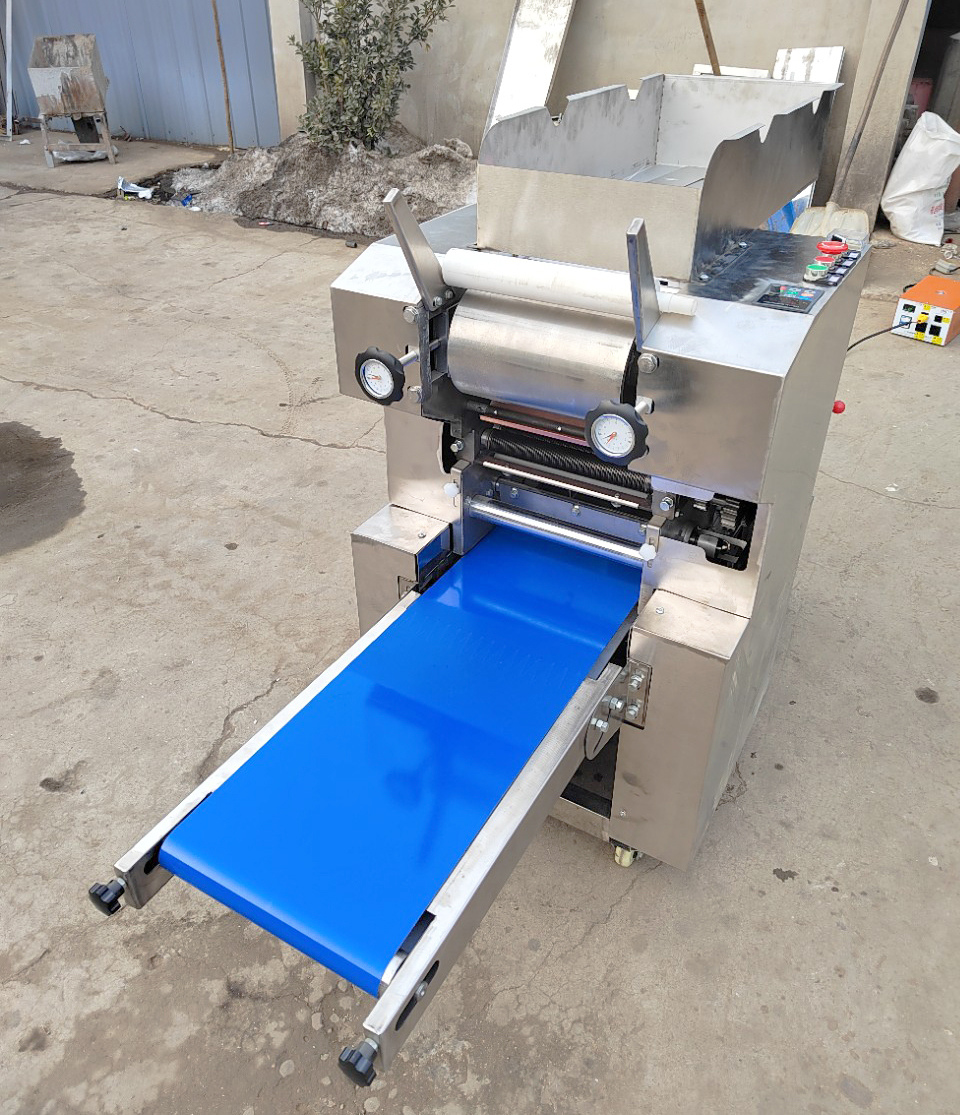

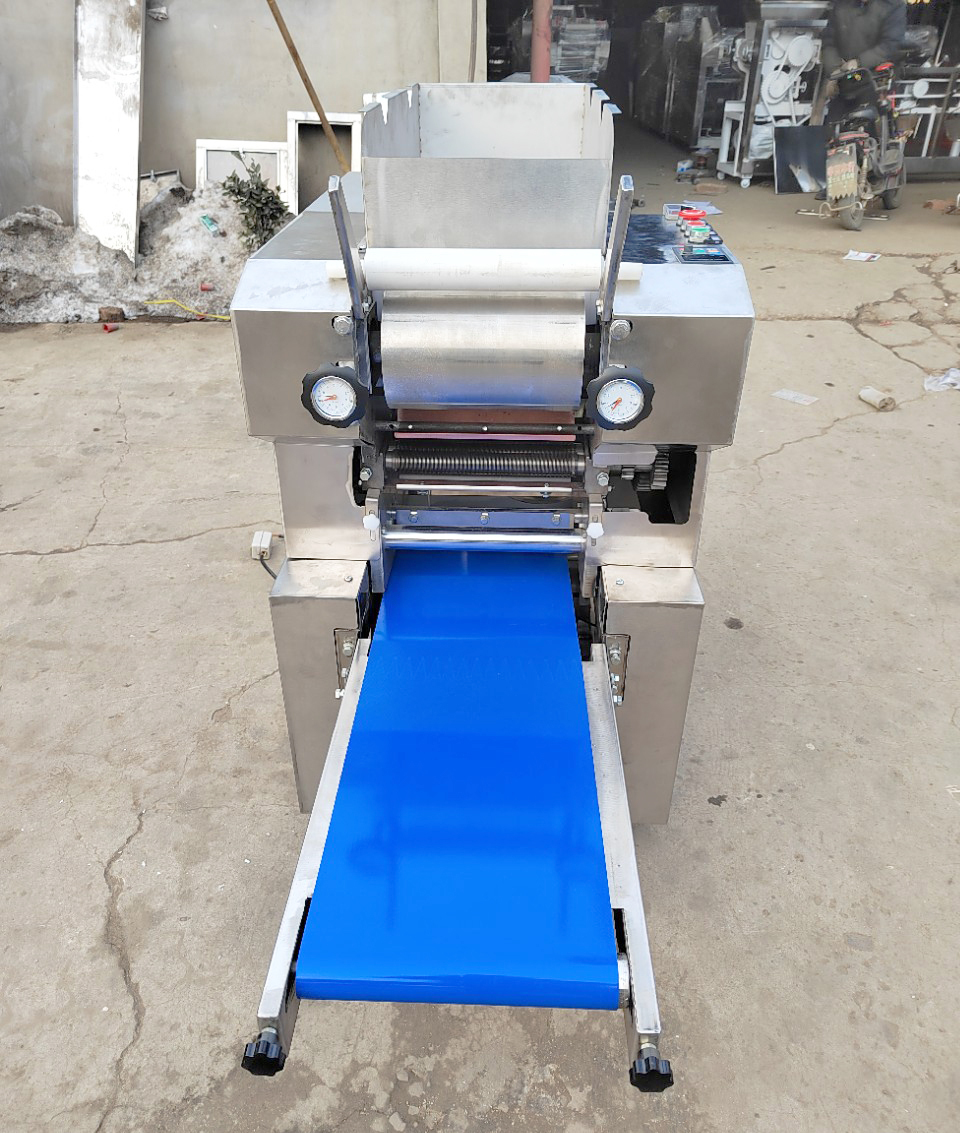

8, the indicating part of the number 8 is the main engine, which is the functional area of pressing noodles.
9, the indication of the number 9 is to adjust the thin or thick handle of the noodles, rotate right, reduce the thickness of noodles, rotate left, and increase the thickness of noodles. Adjust as needed. Specification
