Main parts:

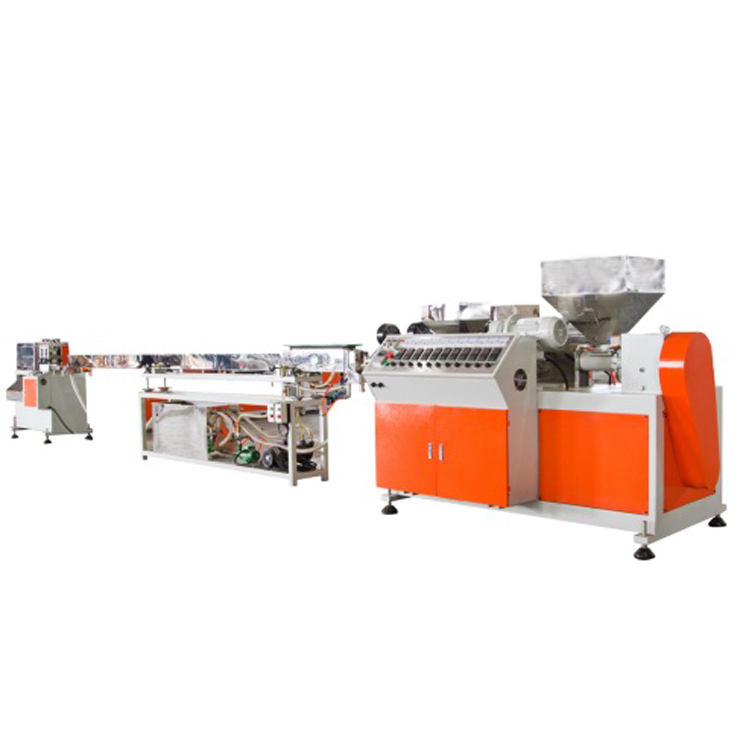

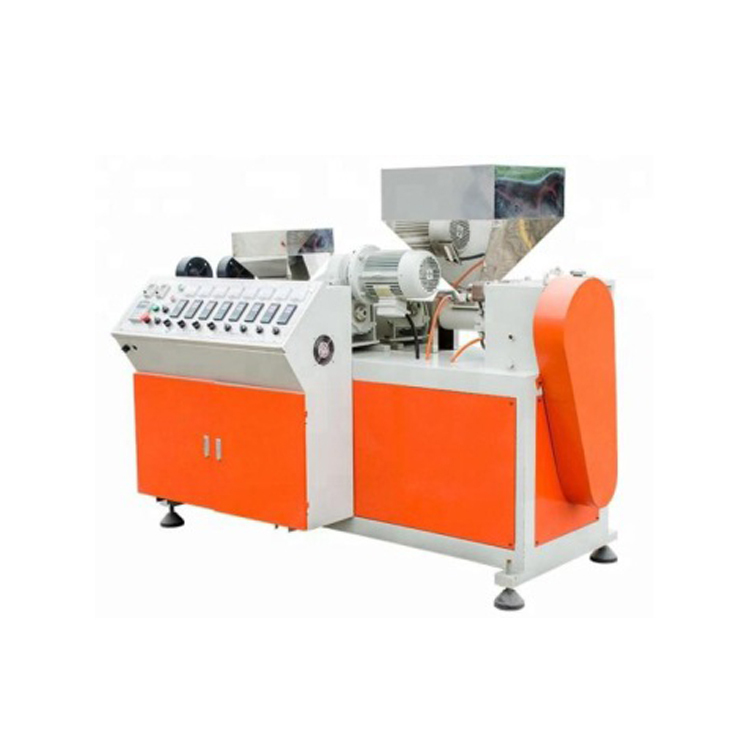

1. Straw extrusion machine
Model Φ 55*28D
1) Screw(especially for PP PE granule )
diameter: 55 mm
L/D 28: 1
Material: 38CrMoAlA
Surface treatment nitriding & polishing
2) Barrel
Material: 38CrMoAlA
Inner surface treatment: nitriding and grinding
3) Gearbox (Italia technology;square type hard gear surface,high torque driving gearbox)
Gearbox frame: Alloy steel (40CrMnMo)
Gear type: inclined gear
Gear material: 20CrMnTi(hard gear surface with grinding treatment)
Axis material: 40Cr
Lubrication system pressure lubrication system
4) Control system
Motor power: 15KW
Control mode: frequency control
2. 5.5 meters thermo tank
Length water tank:5.5m
Material : stainless steel
Supporting rack 1 set.
Heating for PLA material
3. Haul-off machine and cutter
Four wheels haul-off machine 1 set
Haul-off device motor power: 1.5KW
Cutter 1 set
Winder motor power:0.75KW
Control mode: frequency control

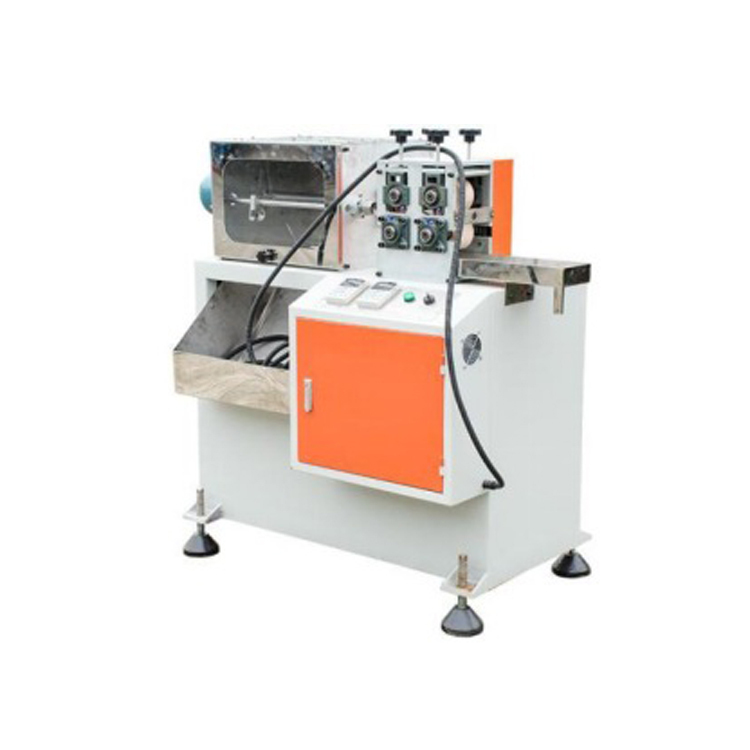

Straw bending machine
|
Speed |
Max.>250 |
|
Inner diameter |
4.3-7.0 (choose one size) |
|
Length |
190-260mm |
|
Thickness |
0.10-0.18 |
|
Short side length |
35-48mm |
|
Corrugation quantity |
11(11-13) |
|
Measurement |
(L×W×H)1700×1350×1600 |

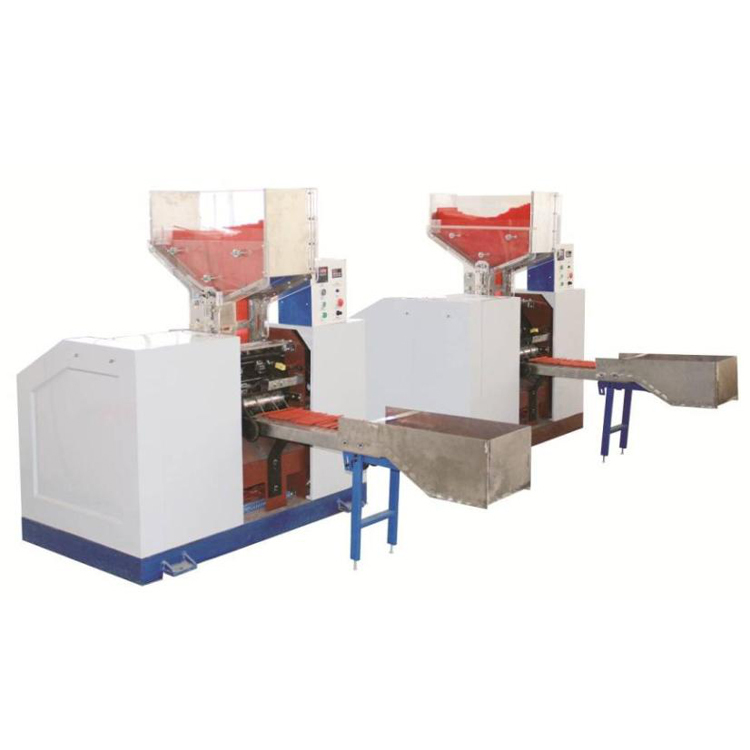

Straw packing machine
|
Motor |
0.75kw(Adjusting speed by converter) |
|
|
Capacity |
600~800pcs/min |
|
|
Packing method |
Three faces |
|
|
Material |
Film or paper |
|
|
Specification of straw |
Diameter |
Φ5~Φ13mm |
|
Length |
130~270mm |
|

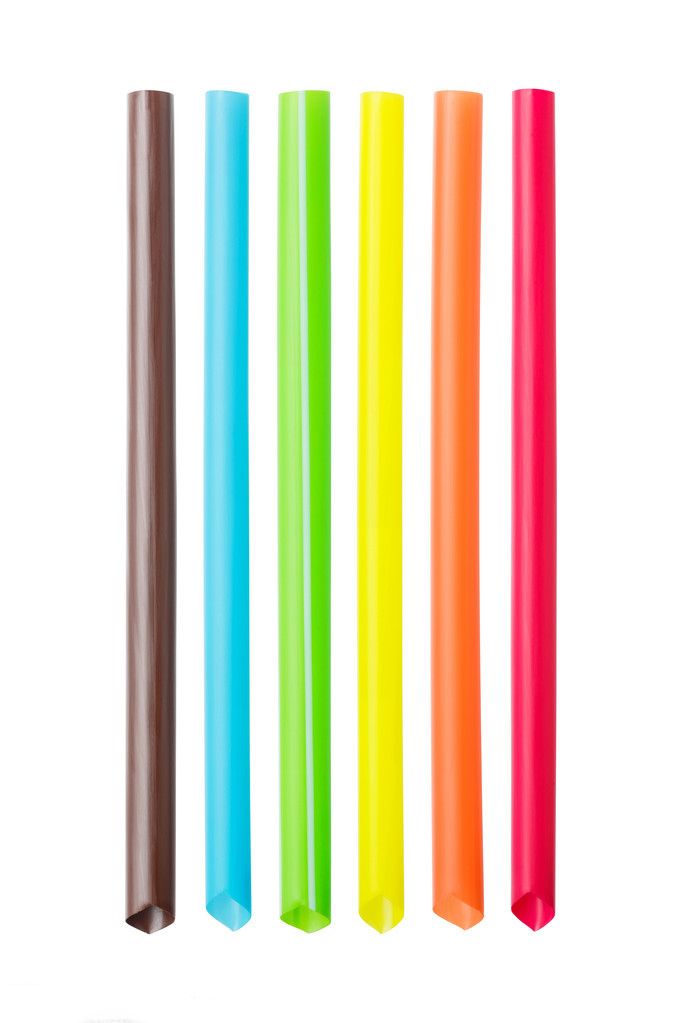

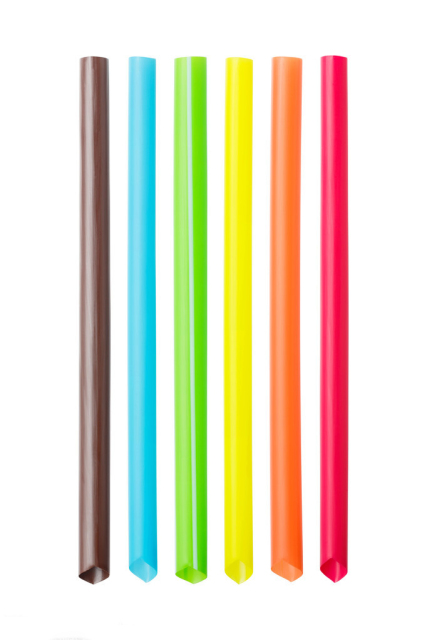

Final products:
