Disposable Paper Tea Cups Making Machines Fully Automatic Price

No.P001
FOB Price: US $4500-12000/ set Get Latest Price Min.Order Quantity: 1 set Supply Ability: 200 sets per Month Port: Shanghai, Qingdao
  • Disposable Paper Tea Cups Making Machines Fully Automatic Price
  • Disposable Paper Tea Cups Making Machines Fully Automatic Price
  • Disposable Paper Tea Cups Making Machines Fully Automatic Price
  • Disposable Paper Tea Cups Making Machines Fully Automatic Price
  • Disposable Paper Tea Cups Making Machines Fully Automatic Price

Description

Disposable Paper Tea Cups Making Machines Fully Automatic Price

Introduction

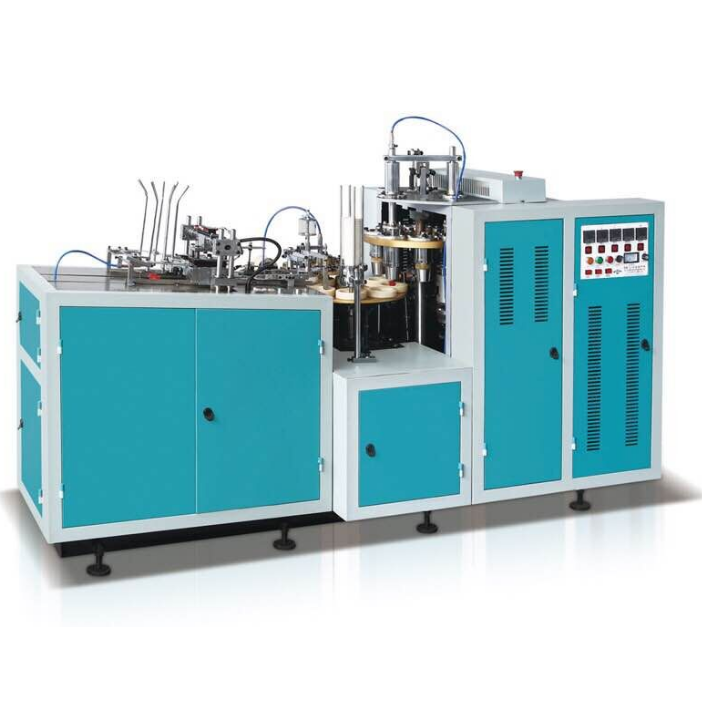

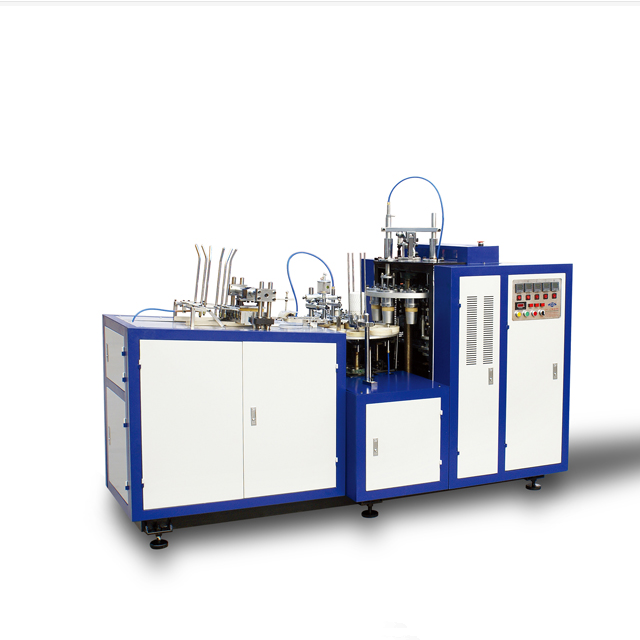

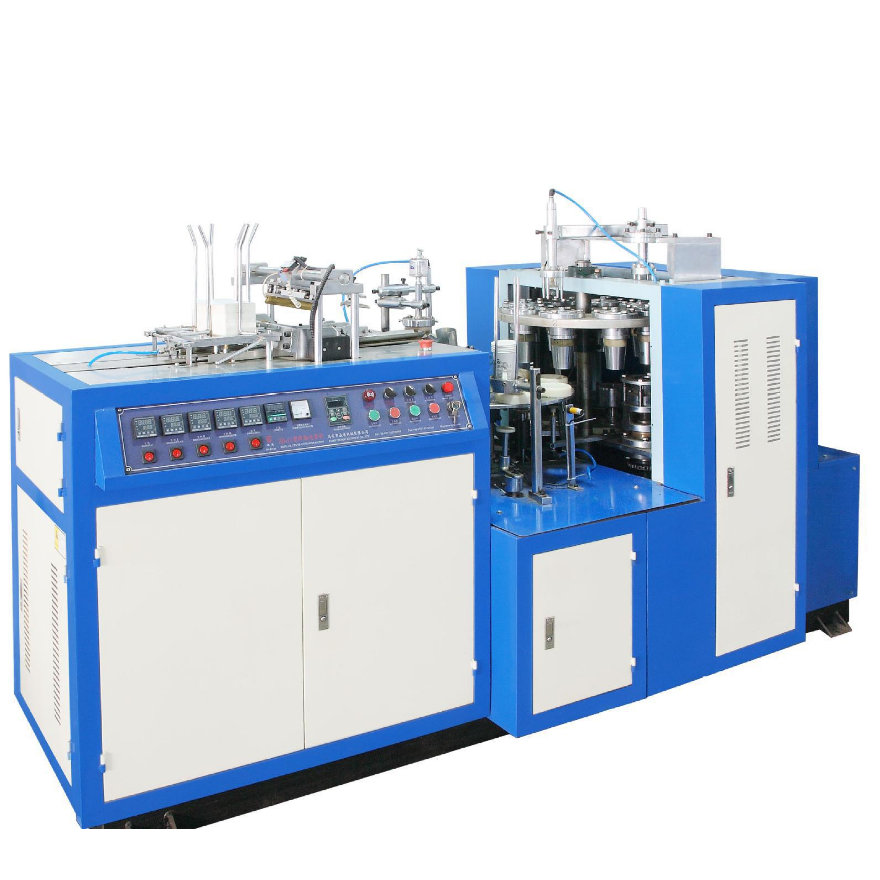

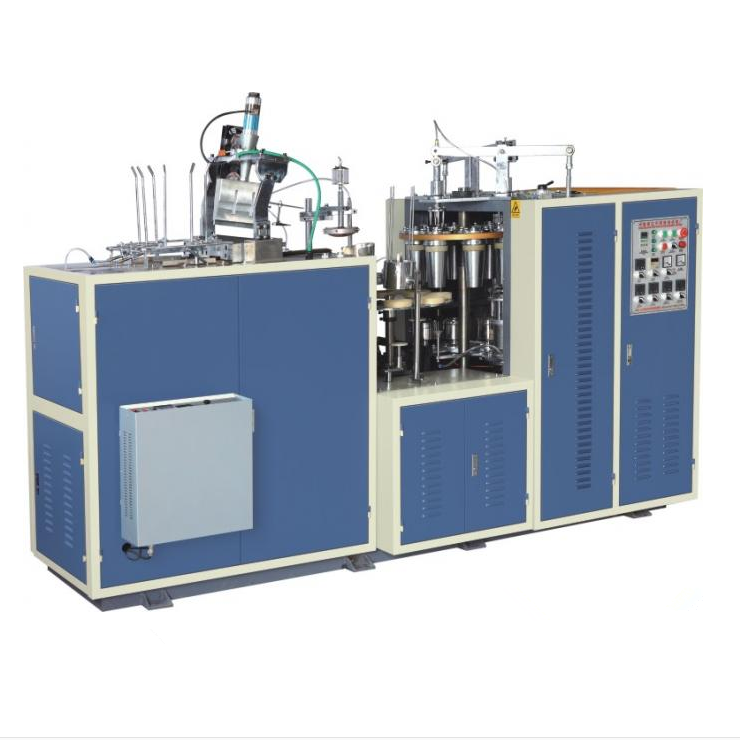

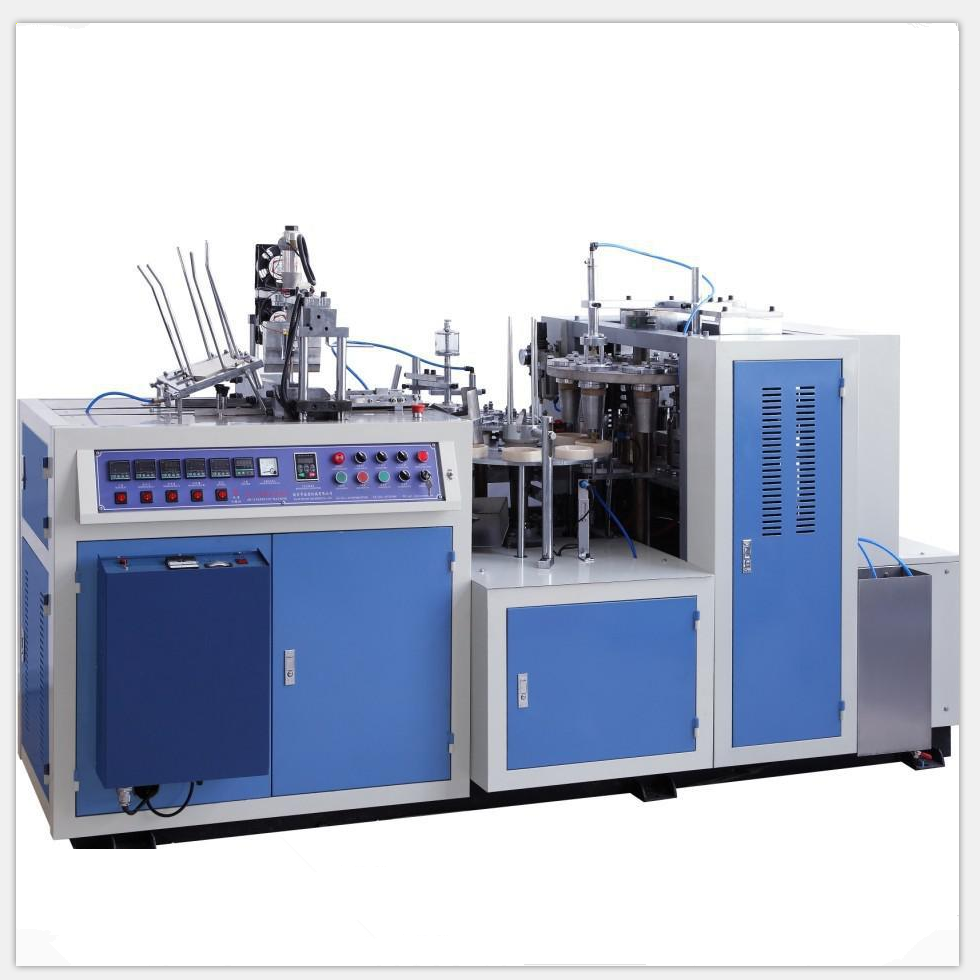

This Paper Cup Molding Machine is an automatic machine with multi-working station.

It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonic welding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. The sealing system is ultrasonic sealer, so this model is suitable for making two side

PE coated paper with full printing design cups. This cup can for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc.

Specification:

Model

PH-9

PH-12

Production capacity

50-60PCS/min

45-55PCS/min

Required   paper

 150-320gsm Single Side PE Paper

150-320gsm Single Side PE Paper

Cups Range

(A) 50 -80MM

(B) 35-95MM

(C) 35-60MM (D)5 -10 MM

(A) 50 -85MM (B)35-115MM
(C) 35-70MM (D)5 -10 MM

Total power

220/380V 50HZ  4.5KW

Weight

1350kg

1400 kg

Overall dimensions (L*W*H)

 2500*1300* 1700mm

2650*1300* 1800mm
