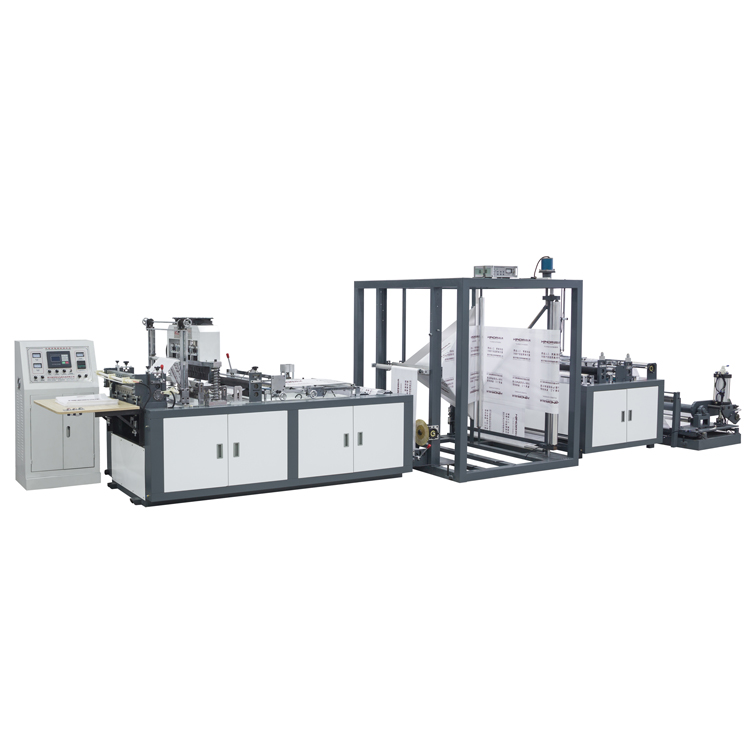

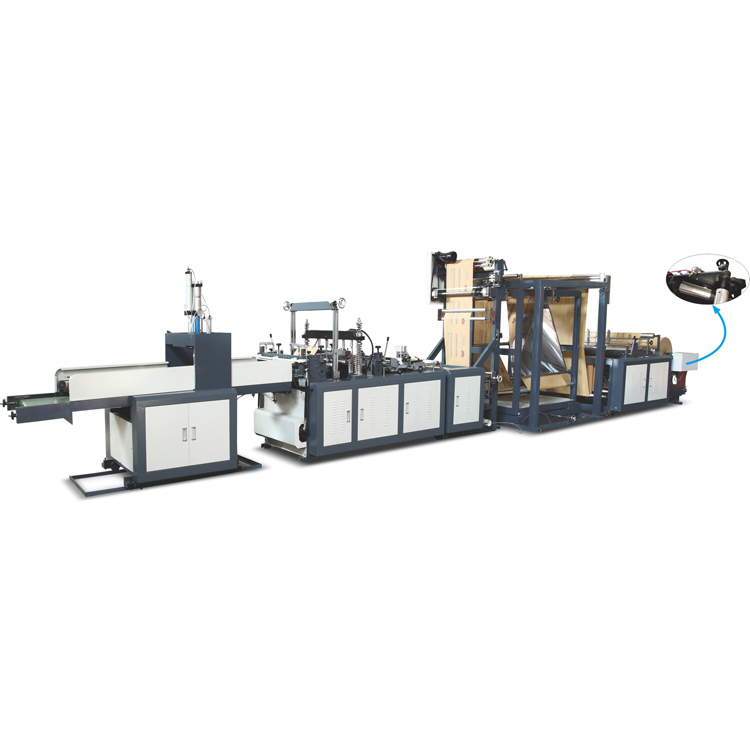

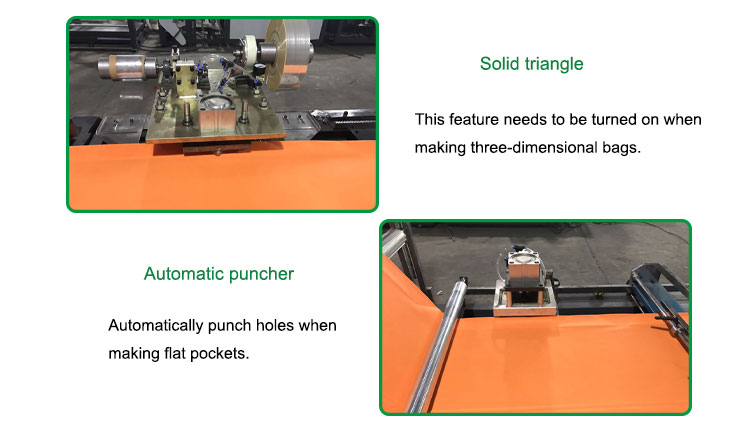

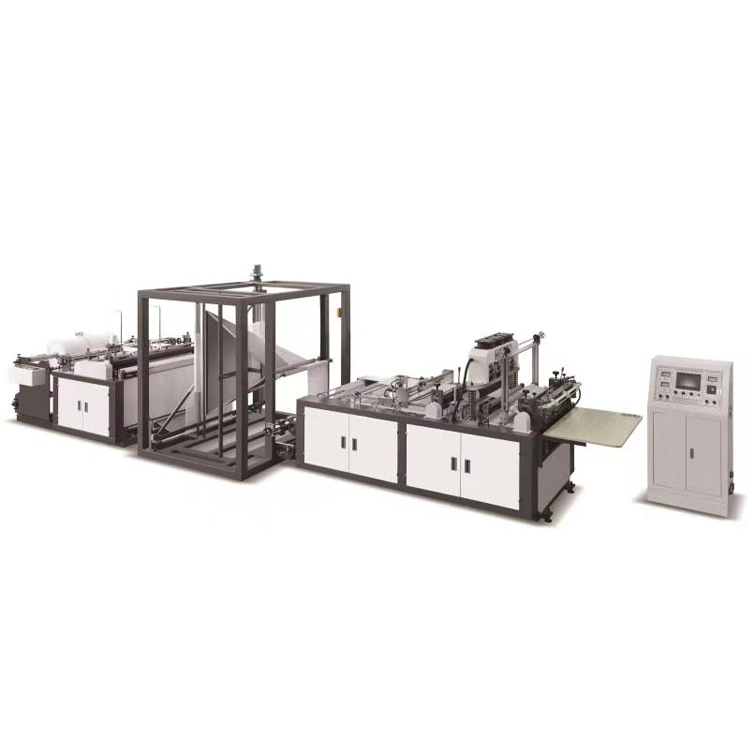

The machine is made of non-woven fabrics, which can process a variety of different specifications, different types of non-woven vest bags, flat pockets, rope bags, etc. The machine integrates electromechanical, using LCD touch screen operation. Equipped with step-adjustable fixed length, photoelectric tracking, computer automatic positioning, computer automatic edge correction, accurate and stable. Automatic counting can set the counting alarm, automatic punching and other industrial control devices, so that the finished product sealing line is firm and the tangent is beautiful.

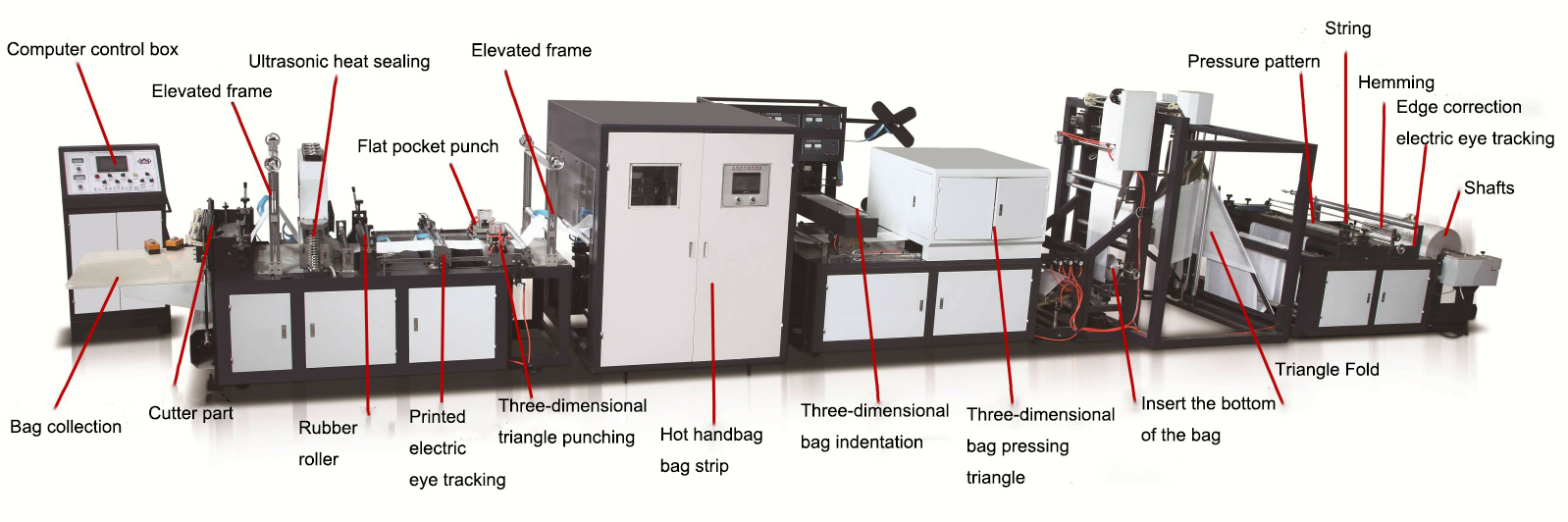

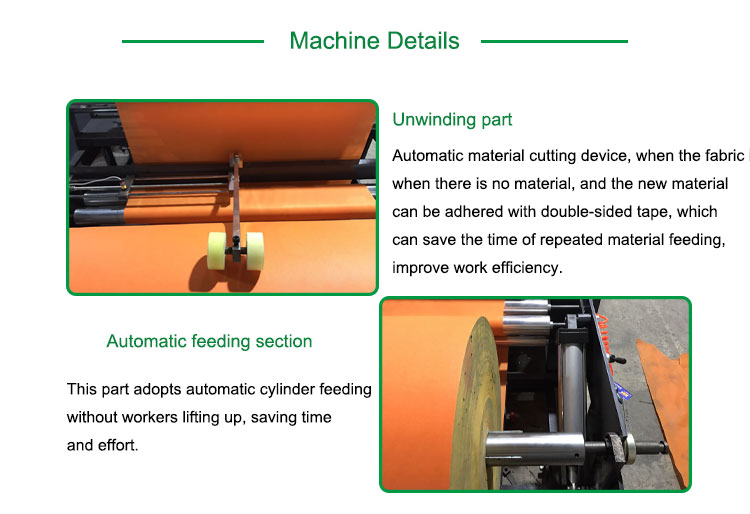

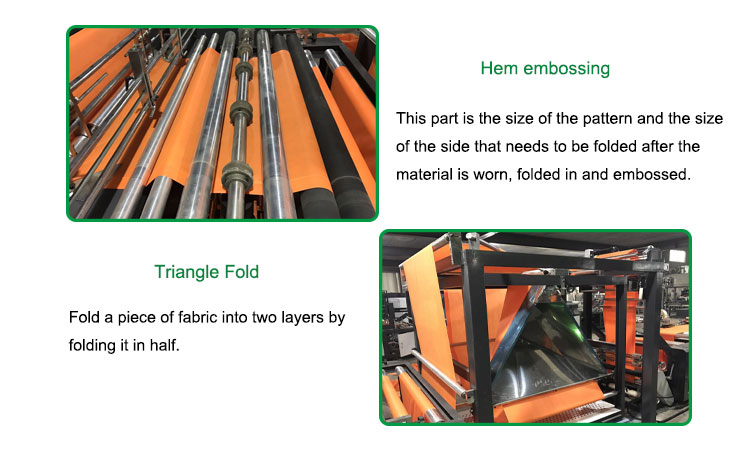

Process flow: reel---folding---setting---punching---discharging---heat sealing---folding---heat sealing---cutting---collecting finished products.
| Model | PH-Ac600 |
| Voltage | 220v/380v |
| Power | 11kw |
| Bag length | 200-500mm |
| Bag width | 100-800mm |
| Bag thickness | 20-100g |
| Production speed | 20-100pcs/min |
| Dimension | 7600*1650*1800mm |
