Plastic HDPE PE PP Three Layer Film Blow Blowing Machine

Item No.: PP001
FOB Price:
US $8000-10000/ Set  Get Latest Price
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
100 sets per Month
Shanghai / Qingdao
Payment Terms:
T/T,Western Union,MoneyGram,Paypal
Description Related products Packing & Shipping FAQ

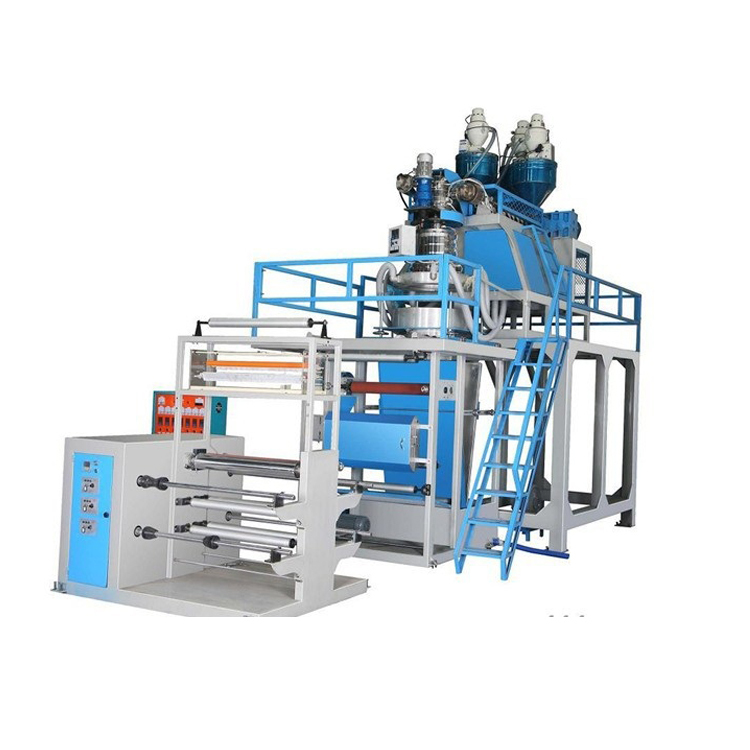

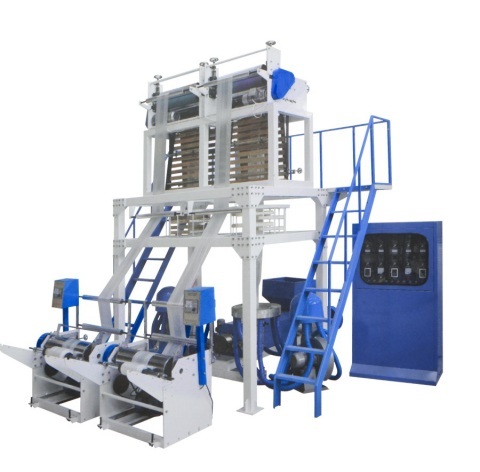

Plastic HDPE PE PP Three Layer Film Blow Blowing Machine



Its extruder, barrel and screw are treated with high quality alloy steel, nitrized and precise. Therefore, in good hardness, corrosion resistance. The specially designed screw is the sound quality of plasticizing, which can help to increase production capacity. Suitable for blown plastic film low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE). It is widely used in the production of food packaging bags, clothing bags, vest bags, garbage.

(the equipment is made between 10 and 55 centimeters, with all sizes adjustable)


Performance: suitable for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) plastic film.

More details:


Model PH-SJ50/FM600
Screw diameter


Screw L/D Ratio 30:1
Screw speed 10-120rpm
Mold head specification 50mm (according to customer needs)
Die head structure inner spiral, center feed
Die head material 45 # machine head with hard chrome
Product thickness  0.008-0.10 mm
Width of products 100 -- 600mm
Main motor power 11KW 4 stage three-phase asynchronous motor inverter control
Heating power 12KW
Maximum yield 35-48kg/h (based on thickness and width)
Total weight 2.5 tons
Dimensions 4500 * wide 2200 * high 3800mm
Related products

Cutting machine

Disposable glove making machine

Sealing machine

Packing & Shipping

Packaging Details: wooden case or as customers' requested

Ports: Qingdao/Shanghai/Ningbo/Guangzhou

Lead Time: Within 5-7 days after payment

Q:Are you manufacturer?
A:Yes,we are manufacturer with more than 20 year'experience.
Q:Can you ship the machine to my address?
A:Yes,we could use DHL to delivery the machine while the transport cost will be not cheap.And it is suitable for this kind of machine.
Q:Where are you?Can we go to China and visit your factory?
A:Yes,of course.We are in Henan,China.Welcome to our factory.
Q:Do you have manual with the machine?

A:Yes,of course.It is in English version.
Q:Can you offer us the necessary paper to do the customs clearance?
A:Yes,of course.We will send you the commercial invoice,sales contract,packing list,bill of lading(FOB or CFR,CIF terms),insurance policy(if CIF terms),also CO if you need.
